Features
Control system
Taiwan Baoyuan control system
User-friendly interface, easy operation and fast response.
ATC High speed spindle router
1.Powerful 9KW automatic tool change Spindle, 24000rpm, Powerful twisting force and fast processing.
2.it is suitable for heavy cutting, milling etc.,it will keep the surface of work pieces very smooth.
Automatic linear type tool changer unit 12pcs
12 pcs tools linear type tool magazine with ISO30
chucks with ER32 collet.
High performance servo motor and reducer
Professionally made, ensure the machine
running accurately in safe with very good
resolution and accuracy.
Automatic tool sensor
The sensor will help measure the Z axis height distance
Imported linear guide rail and rack
Precision ground 30 mm imported linear
guide rails attached to the gantry, with centralized
lubrication system to the bearing blocks to
guarantee smooth travel of the spindle motor assembly.

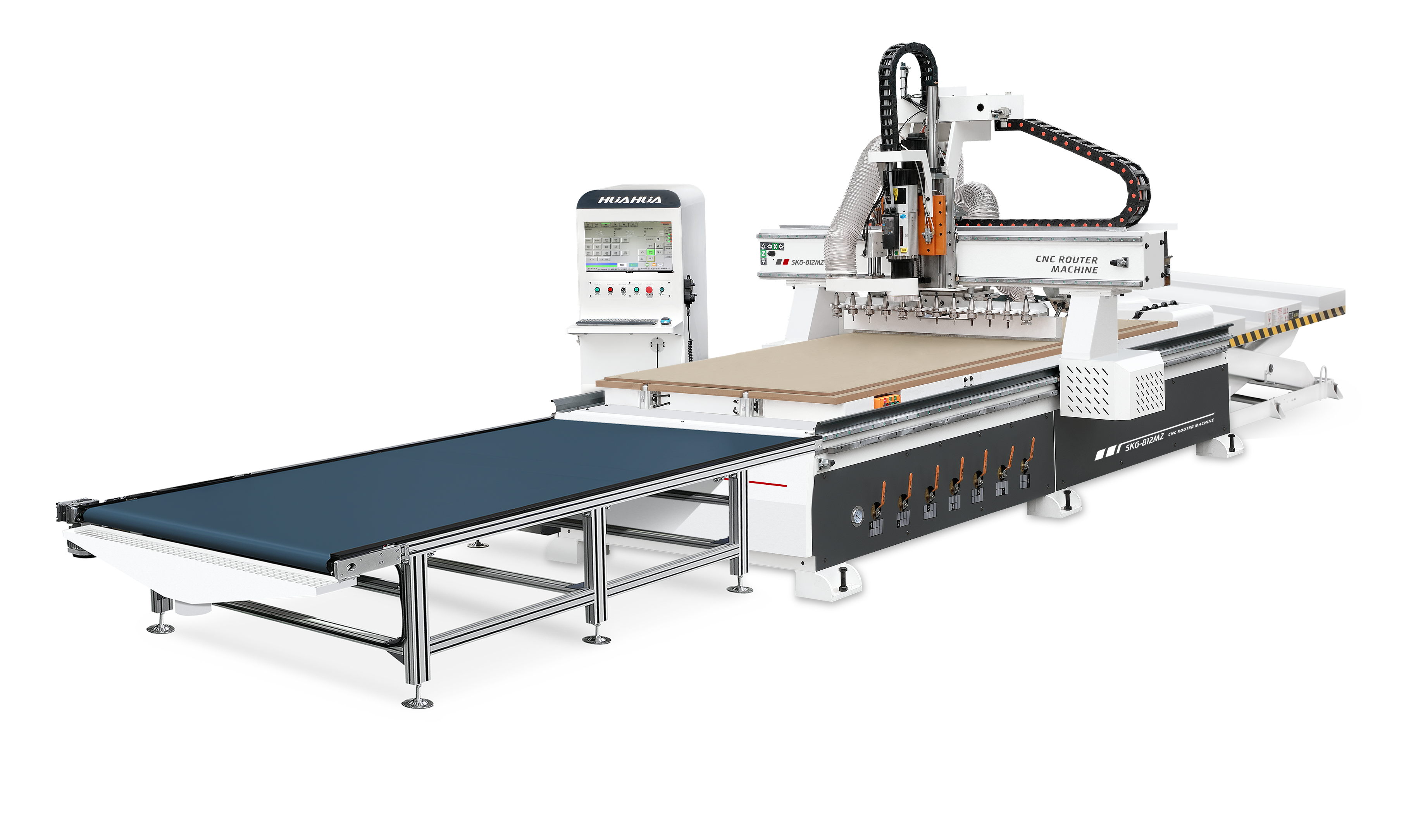

Automatic lift table
Automatic lift table can load board,maxi loading weight is 3000kg.
Automatic conveyor belt
Automatic conveyor belt for transporting the finished board
Automatic stop and work
